High-Efficient Bolt and Pipe Threading Machine 1" & 2" & 4" Pipe Threader NPT BSPT G Tube Cutter Reamer

From the manufacturer

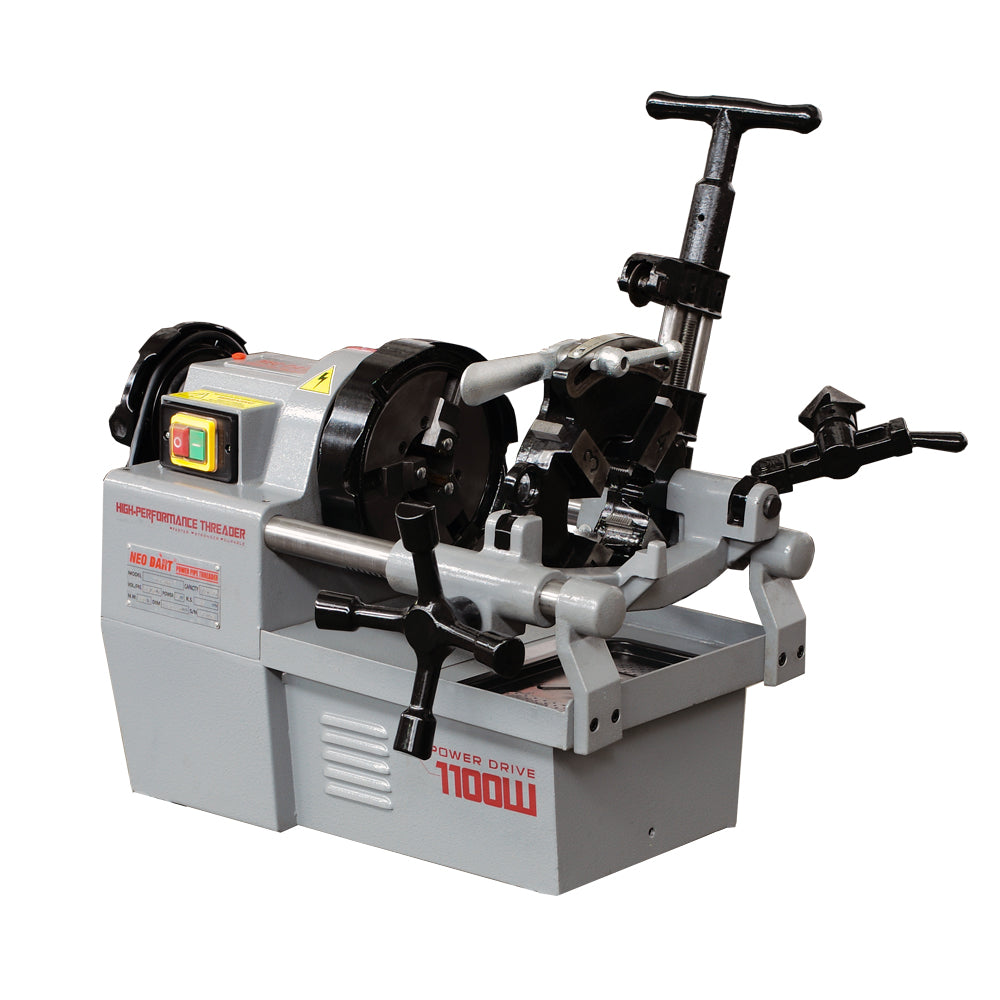

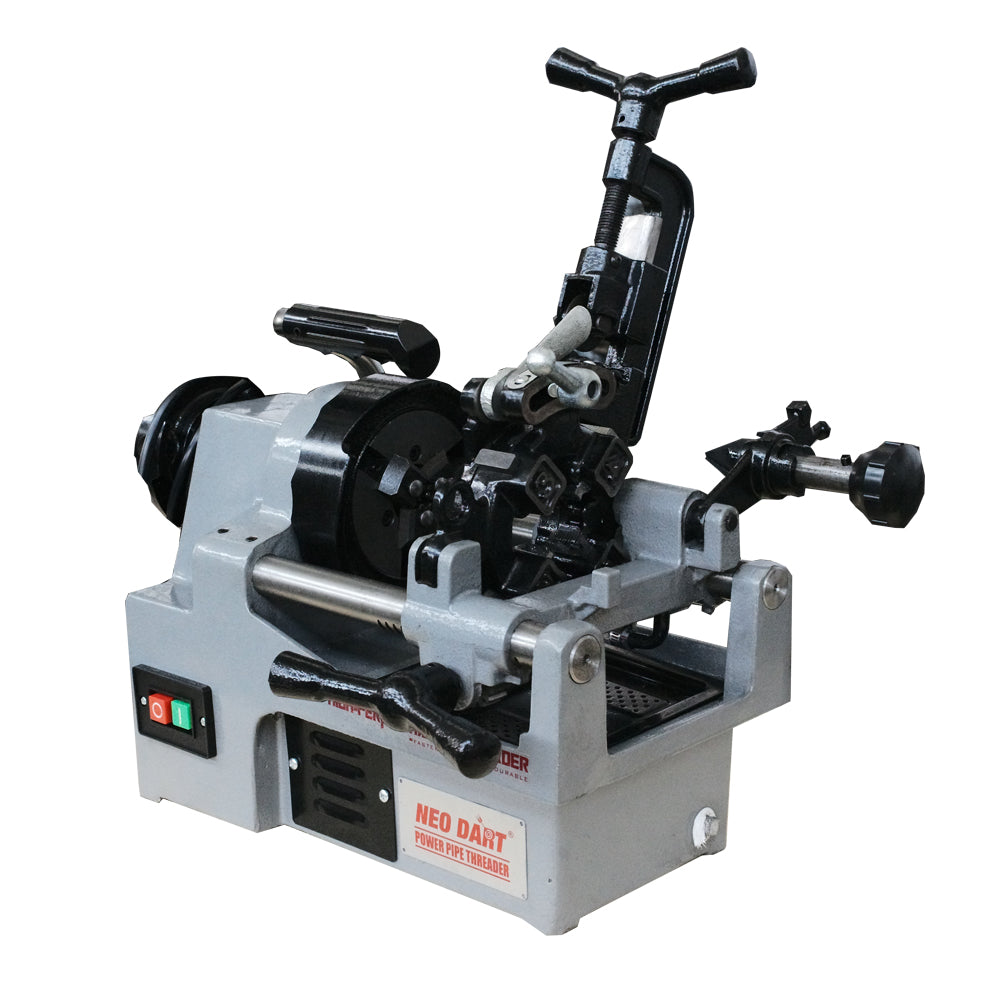

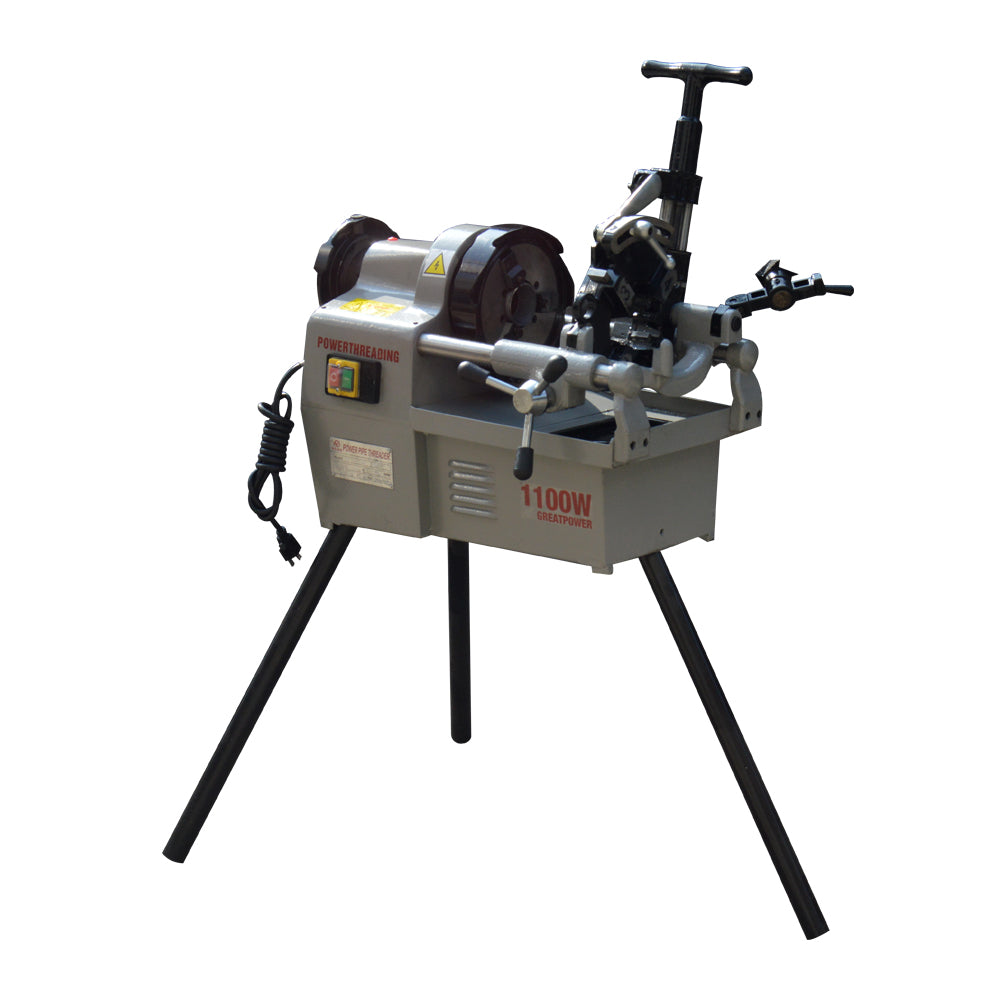

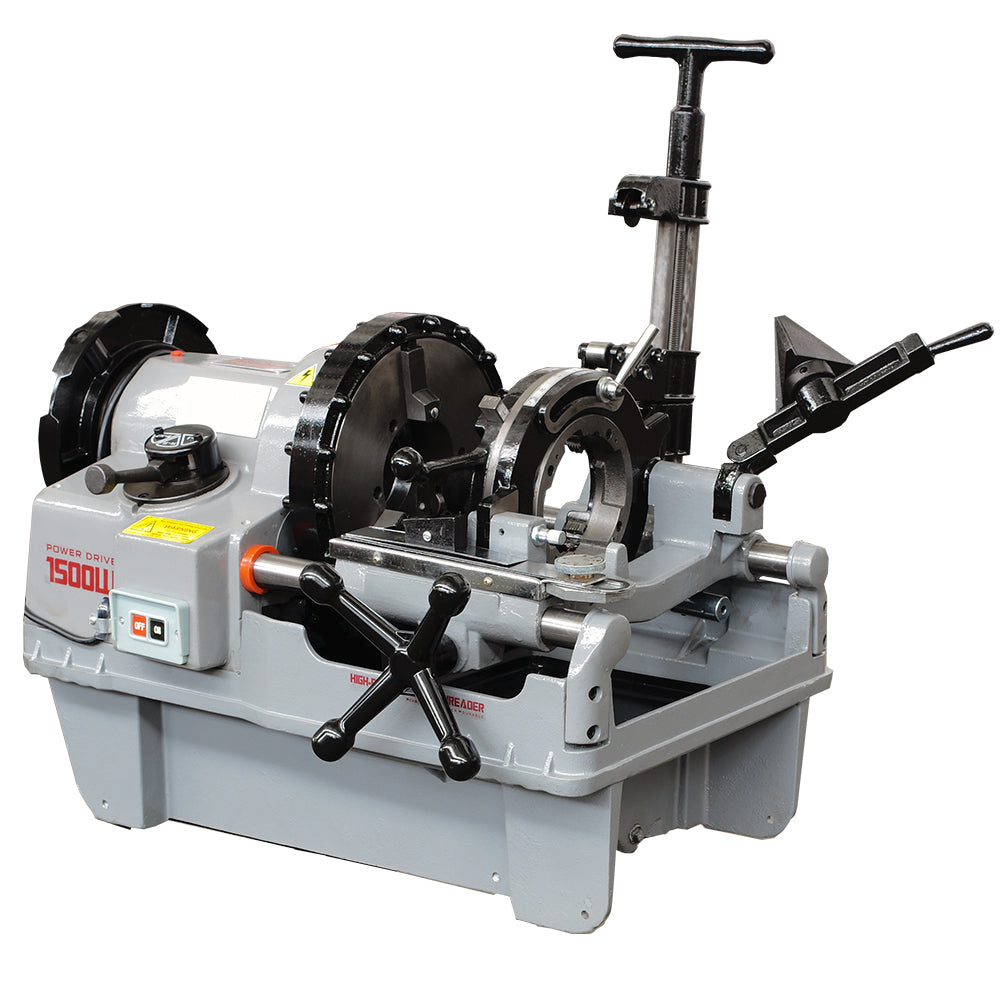

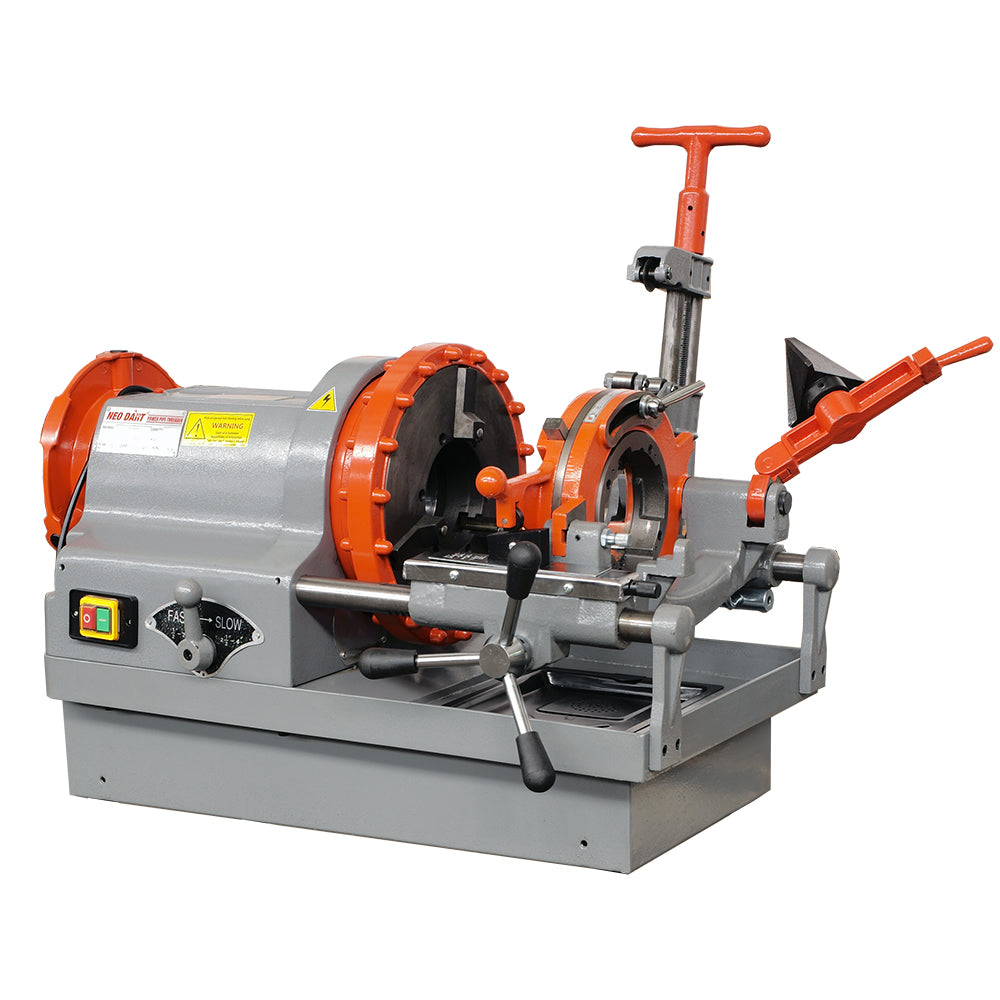

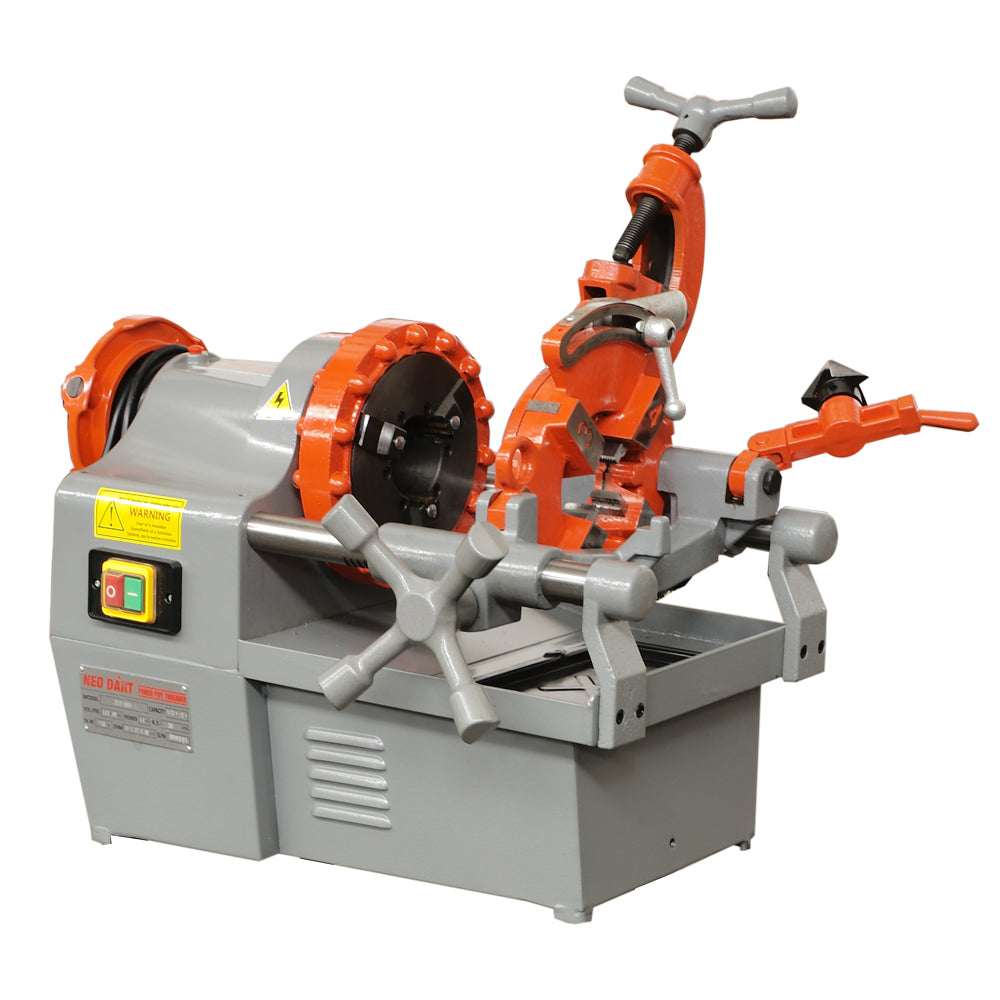

1. Pipe threading machine is a high integration power pipe tools, This threading machine is the perfect machine for pipeline construction, workshop product, service trucks and in-house maintenance, or any application where portability and versatility are needed.
2. The quick-opening die-head  threading pipes steady and smooth, from 1/2" to 2", 2-1/2" to 4" auto-retract die-head threading to 4" pipes.
3. Automatic oiling system produce reliable high quality threads. Self-Priming constant flow gerotor with through the die head oiling.
4. Various power ratings Copper induction motor helps high-perfomance processing, minimize noise, long service life.
5. Remove burrs by the 3 & 5 blade conical reamer.



   The pipe threading machine is a machine which including pipe cutting, threading, chamering.








   Model	Z1T-25AF	Z1T-50A	Z1T-50AF	Z1T-R4II	Z1T-100F-A
   Threading Capacity	1/2" to 1"	1/2" to 2"	1/2" to 2"	1/2" to 4"	1/2" to 4"
   Horsepower	0.9 HP	1.2 HP	1.5 HP	1.2 HP	2 HP
   No. of Speeds	1	1	1	2	3
   No Load RPM	50	28	35	‘12/28	15/25/44
   Maximum Chuck Capacity	1"	2"	2"	4"	4"
   Die Head	1/2" to 1"  multi-functional and self-oiling die head	1/2" to 2" quick-opening and self-oiling die head	1/2" to 2"  Quick-opening and self-oiling die head	1/2" to 2" quick-opening and self-oiling die head; 2½" to 4" auto-retract die head	1/2" to 2" quick-opening and self-oiling die head; 2½" to 4" auto-retract die head
   NPT Dies	1/2" - 3/4" and 1" Right NPT BSPT	1/2" - 3/4" & 1" - 2" Right NPT BSPT	1/2" - 3/4" and 1" - 2" Right NPT BSPT	1/2" - 3/4" & 1" - 2" & 2½" - 4" Right NPT BSPT	1/2" - 3/4" & 1" - 2" & 2½" - 4" Right NPT BSPT
   Chuck Type	hammer chuck with replaceable rocker-action jaw inserts
   Pump	constant flow gerotor
   Reamers with a Shaft	Yes	5 blade conical reamer	5 blade conical reamer	3 blade conical reamer	3 blade conical reamer
   Phase	single phase	single phase	single phase	single phase	single phase
   Voltage	110V / 220V	110V / 220V	110V / 220V	110V / 220V	110V / 220V
   Frequency	50Hz / 60Hz	50Hz / 60Hz	50Hz / 60Hz	50Hz / 60Hz	50Hz / 60Hz
   Amps	8A	10A	13A	19A	19A
